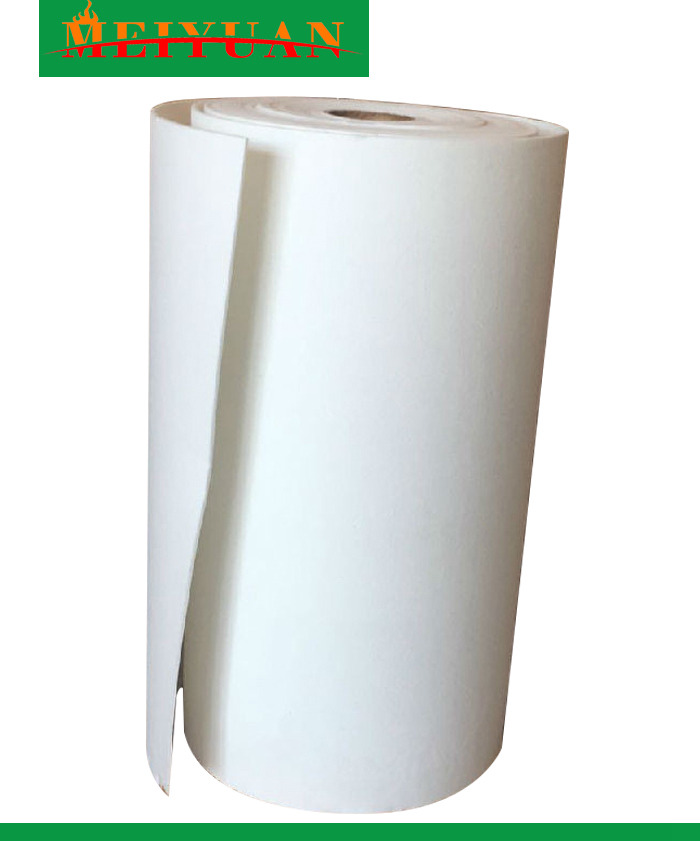

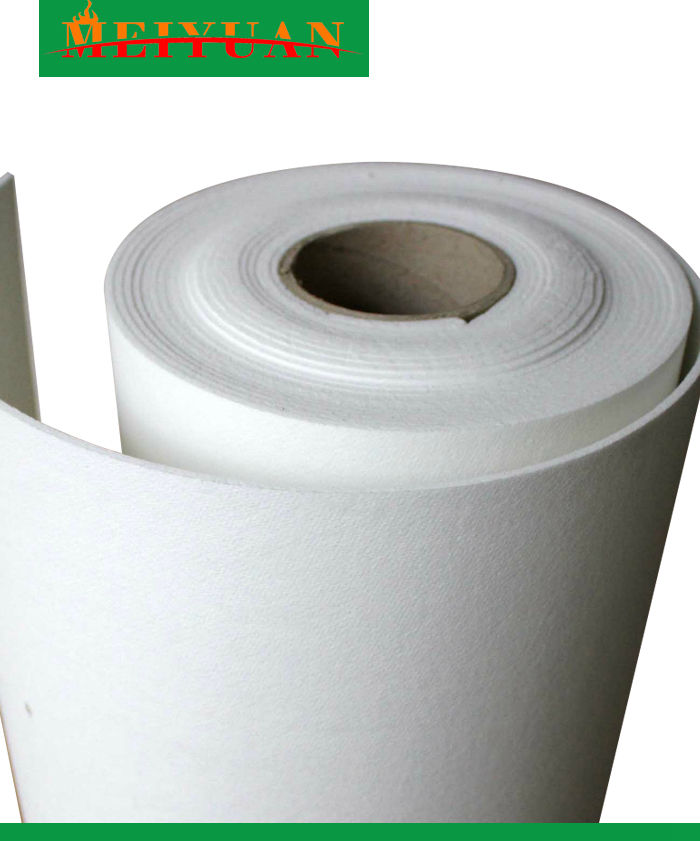

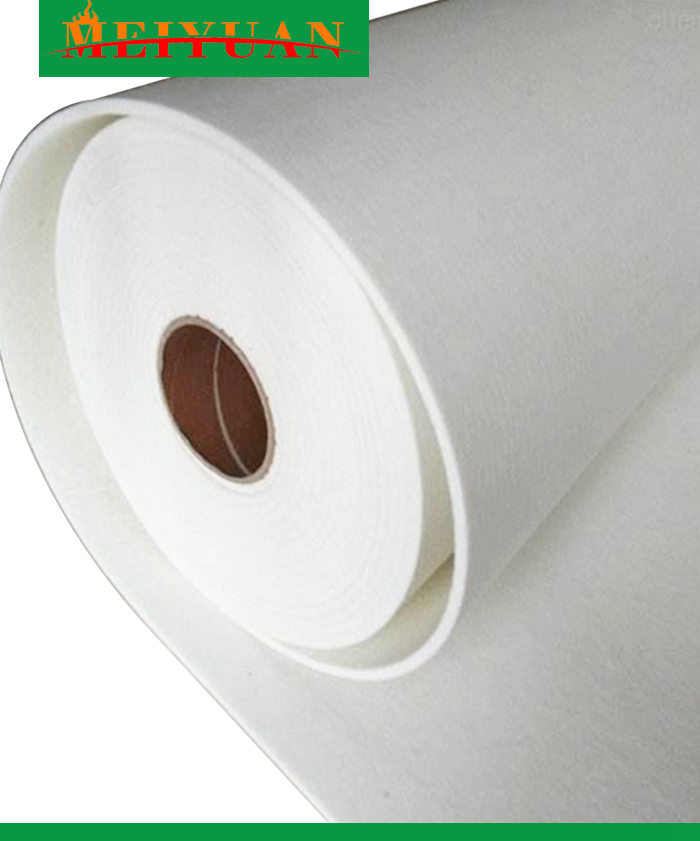

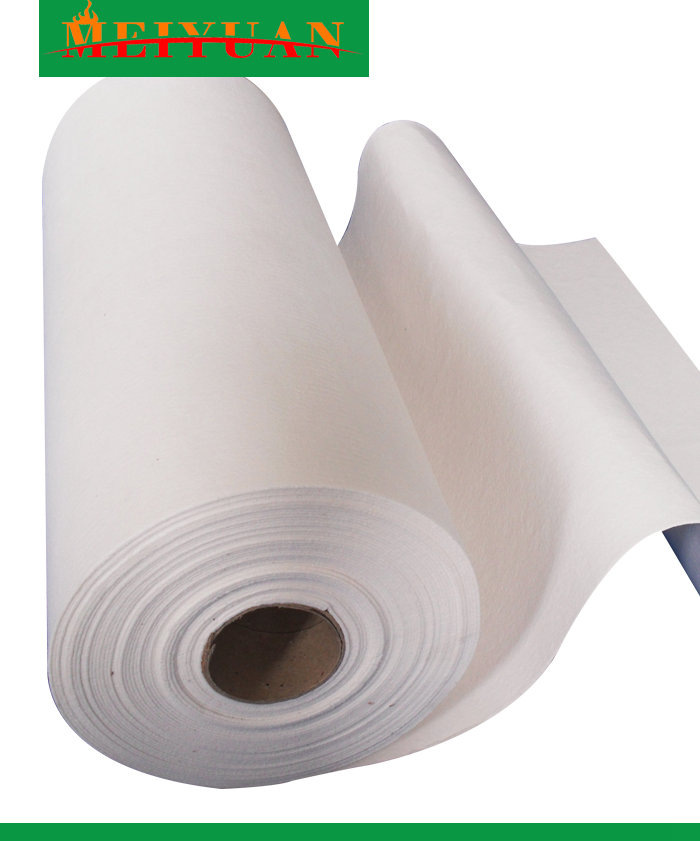

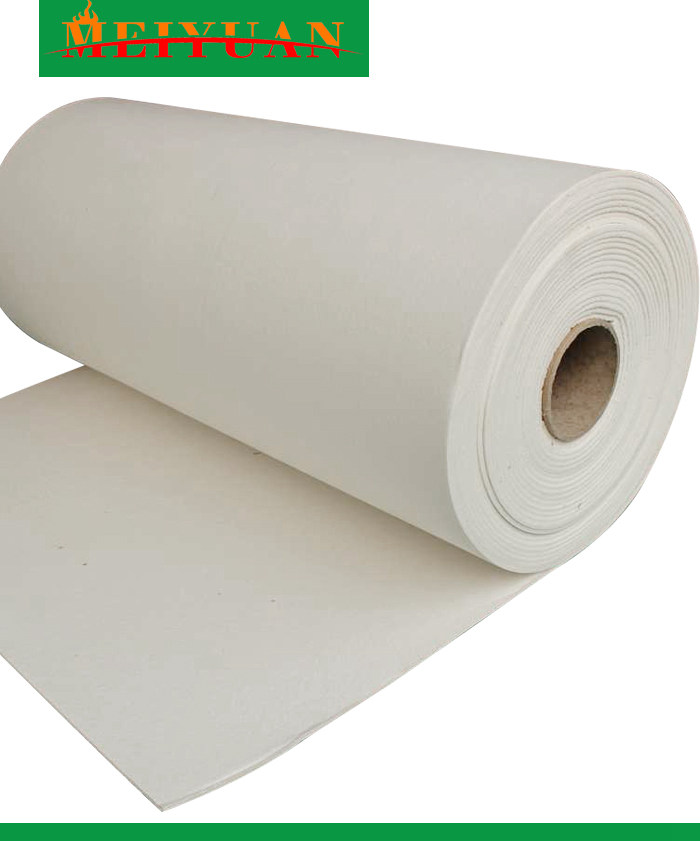

MEIYUAN Soluble paper is made from alkaline earth silicate fiber consisting SiO2, MgO, CaO with certain organic binders. We supply soluble paper whose thickness is from 0.5mm to 12mm, which can be used in many applications at temperatures up to 1200℃.
Products Details
Product Introduction:
MEIYUAN Soluble paper is made from alkaline earth silicate fiber consisting SiO2, MgO, CaO with certain organic binders. We supply soluble paper whose thickness is from 0.5mm to 12mm, which can be used in many applications at temperatures up to 1200℃.
Characteristics:
Resistance to high temperature;
Low thermal conductivity;
Resistance to thermal shock;
Excellent corrosion resistance;
Low shot content ;
Low heat storage;
Low thermal capacity
Low thermal conductivity
Excellent electrical insulation properties
Excellent machining performance
High strength, tear resistance
High flexibility
Excellent wind-erosion resistance, long service life
Accurate sizes and good flatness...
Application:
Industrial insulation, sealing
Insulation material for instruments and heating element
Automotive and aerospace heat shields
Gaskets for ovens, stoves, heaters and other appliances
Automotive muffler insulation
Investment casting mold wrap
Expansion joints filling material
Fireproof material
Technical data and specification
| MEIYUAN Soluble fiber paper | |
| Specification temperature | 1200℃ |
| Density (kg/m3) | 190~210 |
| Working Temp(℃) | 1000℃ |
| Tensile strength(Kpa) | >250 |
| Color | bluish |
| Rate of thermal conductivity(W/n.k)(Density 128 kg/m3) | 0.1(400C) 0.16 (600 C) 0.22(800C) |
| Chemical Composition (%) | |
| SiO2 | 65~68 |
| CaO | 27~33 |
| MgO | 2~7 |
| Others | 0~1 |
| specification | |
| Specification (MM) | 60000*610*1;30000*610*2 |
| 20000*610*3;15000*610*4 | |
| 12000*610*5;10000*610*6 | |
| Min Width: 5cm | |
| Packing | Inner Plastic Bag+Outer Carton |
Why choose us?
1. Soluble fiber paper is produced by nine steps’ slag-removal, its slag content is lower than others. Tensile strength is higher than others.
2. Thickness ranges from 0.5 to 12mm, width ranges from 50mm to 1220mm.
