Soluble Fiber Board

MEIYUAN Soluble fiber board is rigid board using Soluble fiber bulk with organic and inorganic binder. Soluble fiber board is able to contact with fire directly and can be cut into different sizes.

Inquire Now None

Products Details

Product Introduction:

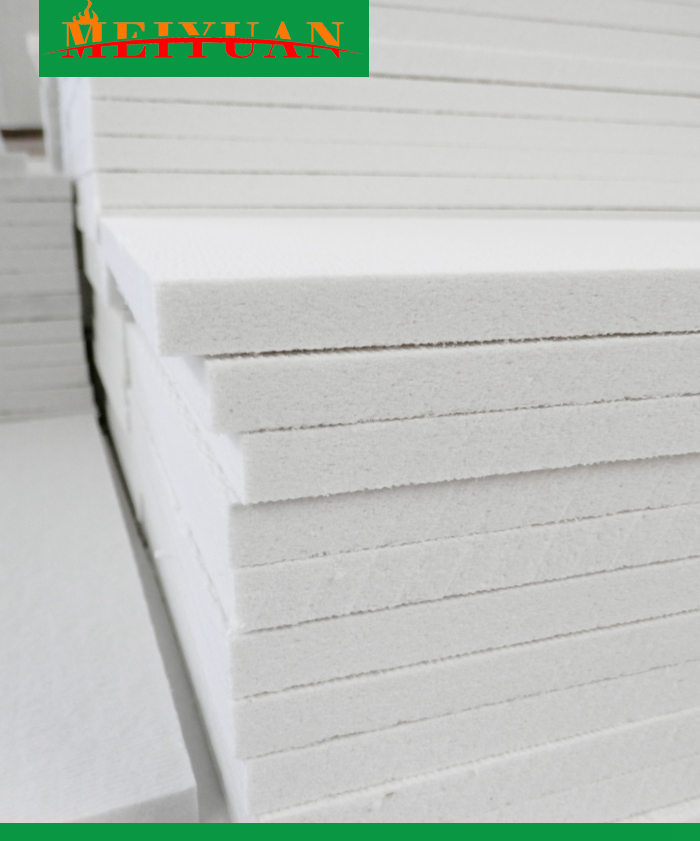

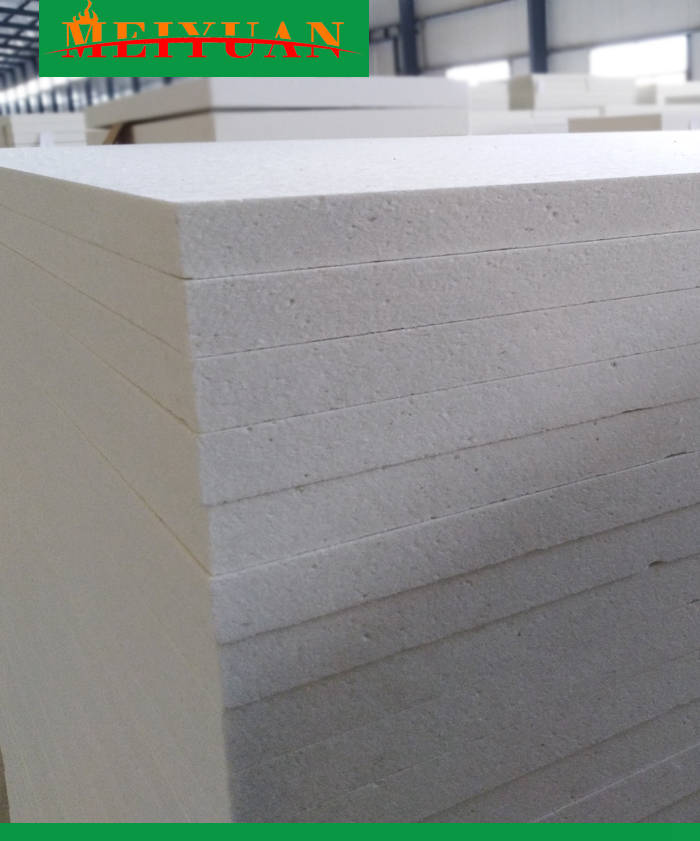

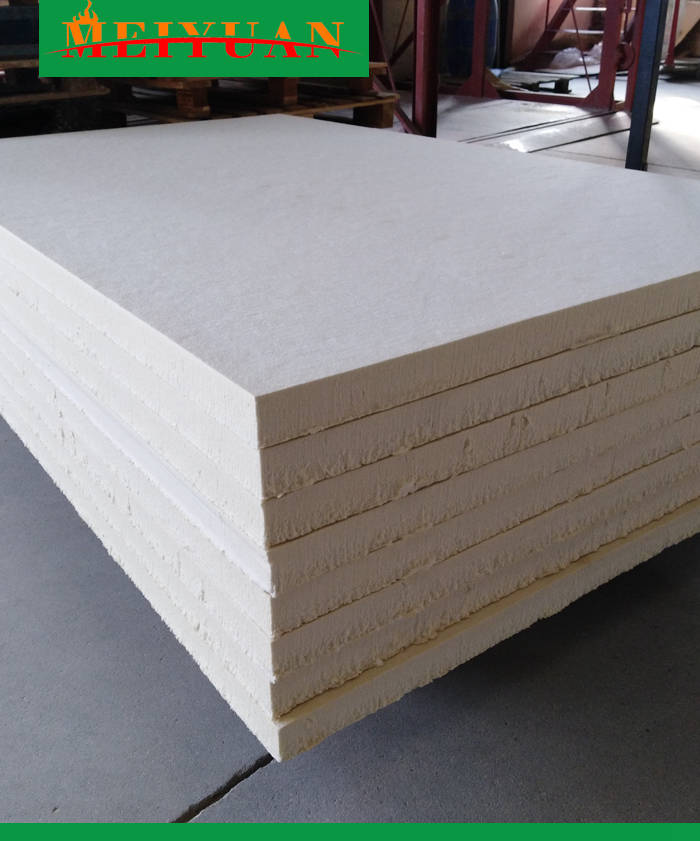

MEIYUAN Soluble fiber board is rigid board using Soluble fiber bulk with organic and inorganic binder. Soluble fiber board is able to contact with fire directly and can be cut into different sizes.

Characteristics:

Resistance to high temperature;

Low thermal conductivity;

Resistance to thermal shock;

Excellent corrosion resistance;

Low shot content ;

Low heat storage;

High compressive strength;

Good sound absorption;

Excellent wind-erosion resistance, long service life;

Excellent thermal stability and thermal shock resistance;

Easily molded or cut, easy to install;

Accurate sizes and good flatness...

Application:

Industrial heat shields & thermal barriers

Industrial combustion chamber construction

Domestic appliance & light-duty industrial combustion chamber construction

refractory lining

Molten metal trough covers

Hot gas duct linings

Expansion joints

Insulating backup to dense refractory materials

Insulating backup to brick & castable

Furnace hot face lining in ceramic kiln, box furnace & petrochemical furnace

Use in industrial heat processing equipment

Rigid high-temperature gaskets & seals

High-temperature baffles & muffles

Flue & chimney linings in furnaces & kilns

Technical data and specification

MEIYUAN Soluble fiber board
Specification temperature		1200℃
Density (kg/m3)		300	320	350
Working Temp(℃)		1000℃
Color		bluish
Rate of thermal conductivity(W/n.k)(Density 128 kg/m3)		0.07 (200 C) 0.1(400C) 0.15 (600 C) 0.19(800C)
Chemical Composition of ceramic blanket (%)
SiO2		65~68
CaO		27~33
MgO		2~7
Others		0~1
specification
Common Size（mm）	L x W	1200x1000;1200x600;
		1000X1000;1000X600;
		900x600; 600x300
	Thickness	10-80

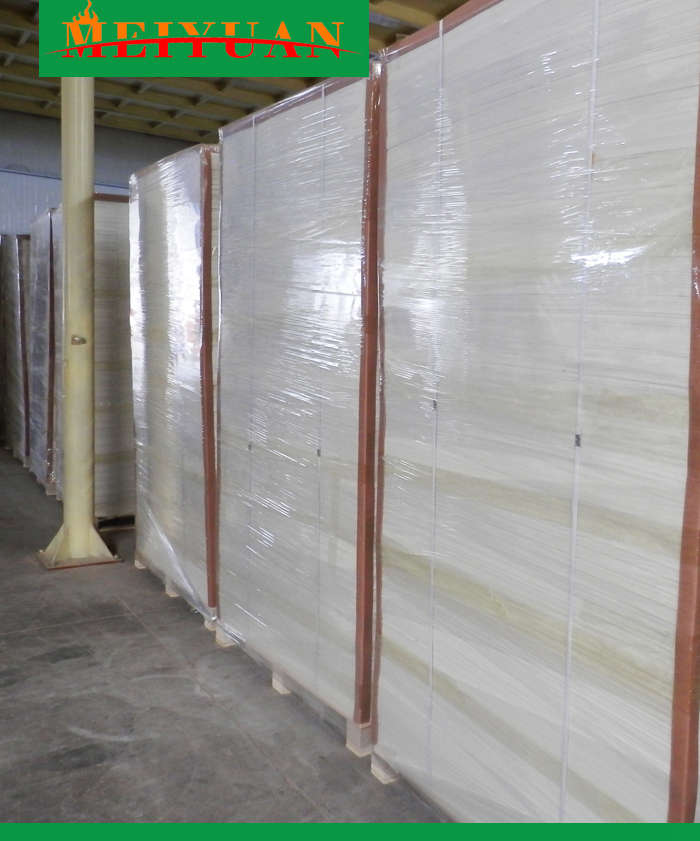

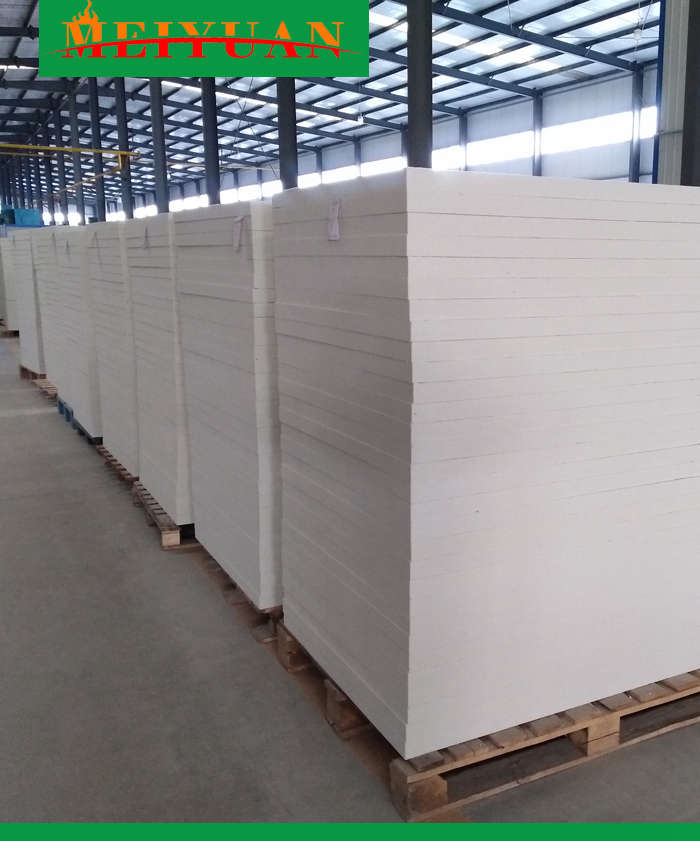

Packing		Inner Plastic Bag + Outer pallet or Carton

Why choose us?

1. Self owned raw material base, material inspection before entering factory, computer-controlled ingredient proportion system, strictly control raw material purity.

2. Continuously operating automatic production line offers product stable quality , which size is precise , high tensile strength.

3. Automatic temperature control system can complete deep drying within 2 hours., thus the high compressive strength and high rupture strength.

4. Able to manufacture various shapes and sizes of soluble fiber board as per customers’ requirement.
