Soluble fiber blanket is made from alkaline earth silicate fiber, which is developed from a calcium, magnesium, silicate chemistry to provide thermal insulation.
Products Details
Product Introduction:

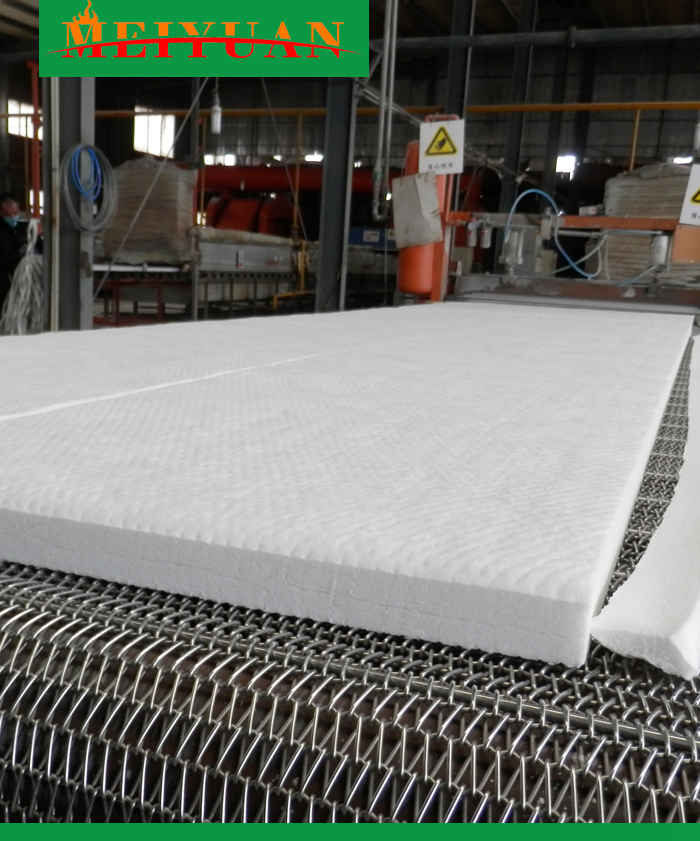

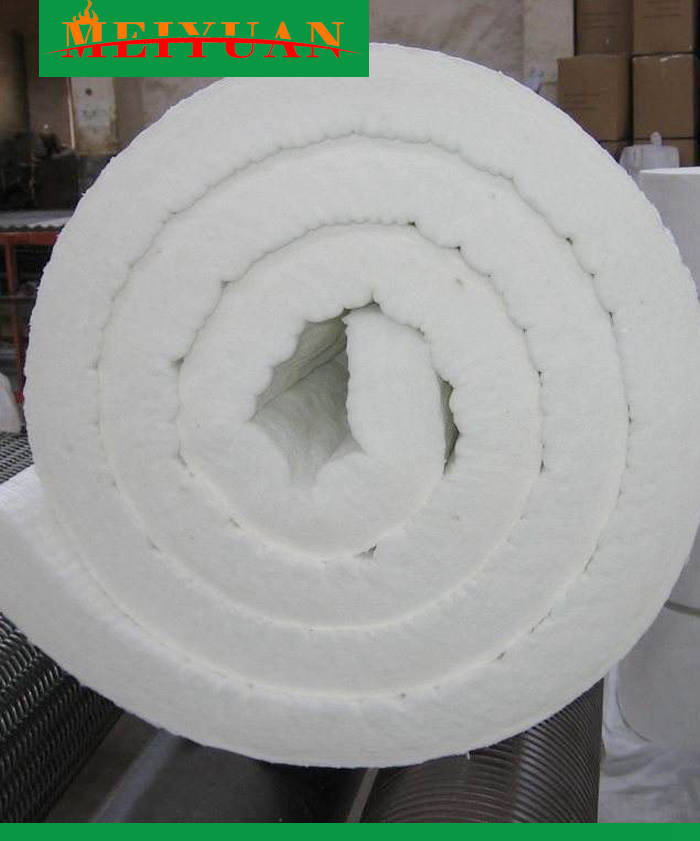

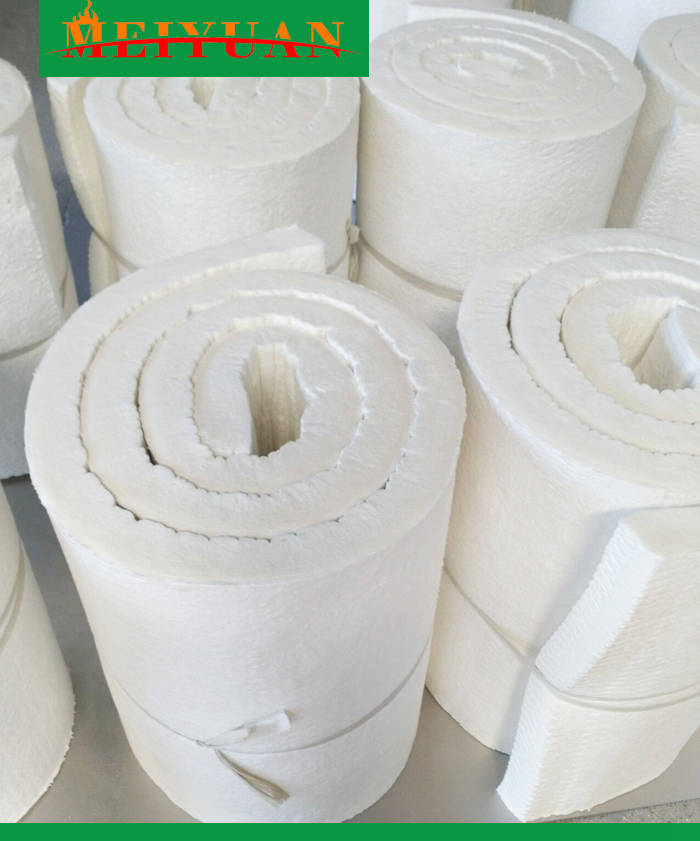

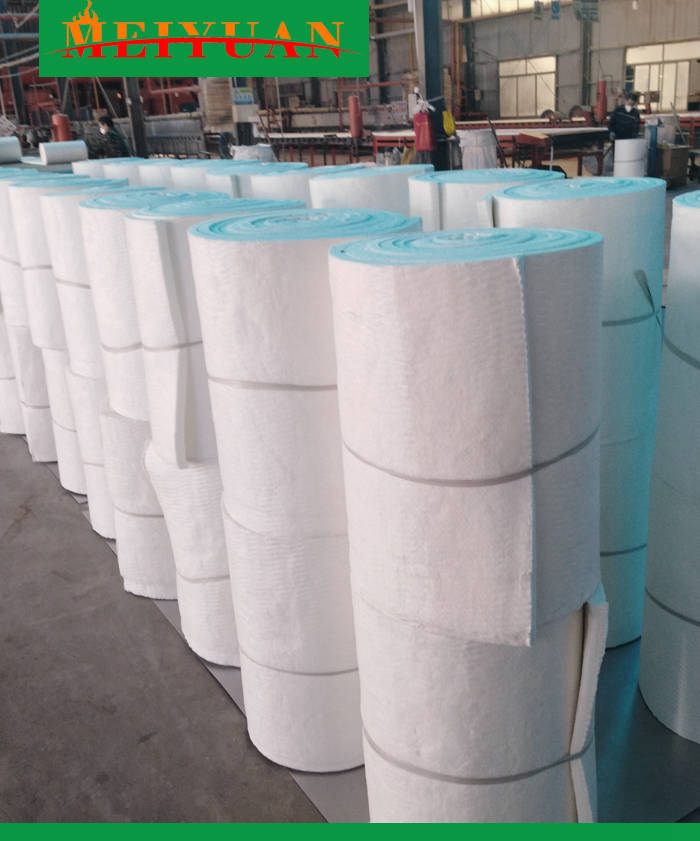

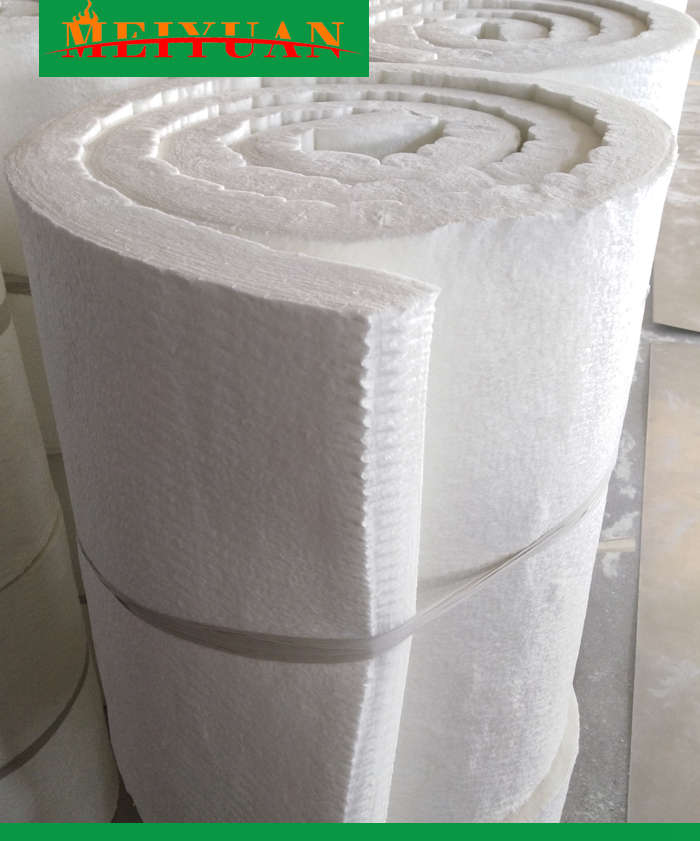

Soluble fiber blanket is made from alkaline earth silicate fiber, which is developed from a calcium, magnesium, silicate chemistry to provide thermal insulation. Due to it can be soluble in body’s fluid, it is named of bio soluble fiber. This special fiber is made from a blend of calcium, silica and magnesium which give fiber the ability to support continuous temperatures up to 1200℃.
Characteristics:
Resistance to high temperature;
Low thermal conductivity;
Resistance to thermal shock;
Excellent corrosion resistance;
Low shot content ;
Low heat storage;
High tensile strength;
Good sound absorption...
Application:
Soaking pit seals
Expansion joint seals
Annealing cover seals
Fire protection systems
Glass Furnace Crown Insulation
Industrial furnace wall lining
High temperature pipe insulation material
Module / folded module processing material
Fireproof coating
Steel industry
Heat treating and annealing furnaces
Furnace door linings and seals
Soaking pit covers and seals
Furnace hot face repairs
Ladle covers
Power generation
Boiler Insulation
Boiler Doors
Reusable Turbine Covers
Glass furnace crown insulation
Investment casting mould wrappings
Incineration equipment and stack linings
Kiln and furnace insulation
Insulation for steam and gas turbines
Removable insulation
High temperature pipe and casting mold insulation
Technical data and specification
| Soluble fiber blanket | |||||
| Specification temperature | 1200℃ | ||||
| Density (kg/m3) | 96 | 128 | 160 | ||
| Working Temp(℃) | 1000℃ | ||||
| Color | bluish | ||||
| Rate of thermal conductivity(W/n.k)(Density 128 kg/m3) | 0.1 (400 C) 0.15 (600 C) 0.2(800C) 0.28(1000 C) | ||||
| Tensile strength(Kpa) (Density 128 kg/m3) | 75 | ||||
| Chemical Composition of ceramic blanket (%) | |||||
| SiO2 | 65~68 | ||||
| CaO | 27~33 | ||||
| MgO | 2~7 | ||||
| Others | 0~1 | ||||
| specification | |||||
| Thickness | Density kg/m3 | Length | Width | ||
| mm | 96 | 128 | 160 | mm | mm |
| 13 | Yes | Yes | customized | 14640 | 610, 1220 |
| 19 | Yes | Yes | customized | 9760 | |
| 25 | Yes | Yes | Yes | 7320 | |
| 38 | Yes | Yes | Yes | 4880 | |
| 50 | Yes | Yes | No | 3660 | |
Why choose us?
1. Self owned raw material base, material inspection before entering factory, computer-controlled ingredient proportion system, strictly control raw material purity. therefore, manufactured ceramic fiber blanket’s shot content is lower than similar products.
2.Using double sides needled methods which can improve the tensile strength and the flatness of the ceramic fiber blanket. ceramic fiber blanket’s service life is longer than others.
3. Weigh before packing to guarantee the actual weight of each roll is no less than theoretical weight.
4. Possessing bio soluble test certificate of European Fraunhofer laboratory.
