MEIYUAN Ceramic Fiber Rope is a length of fibers, twisted or braided together to improve strength for pulling & connecting and can also be called as fibril or filament.
Products Details
Product Introduction:

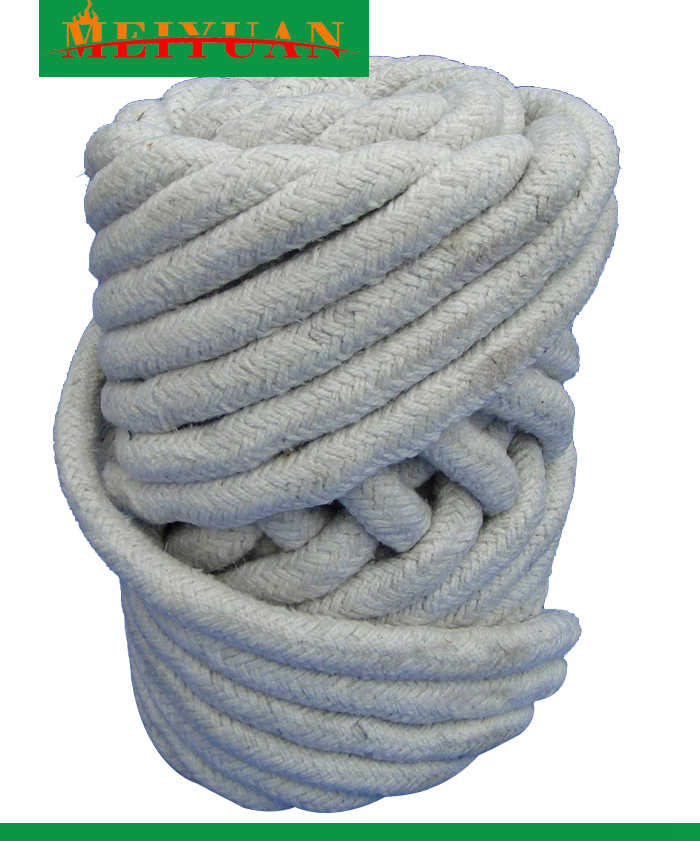

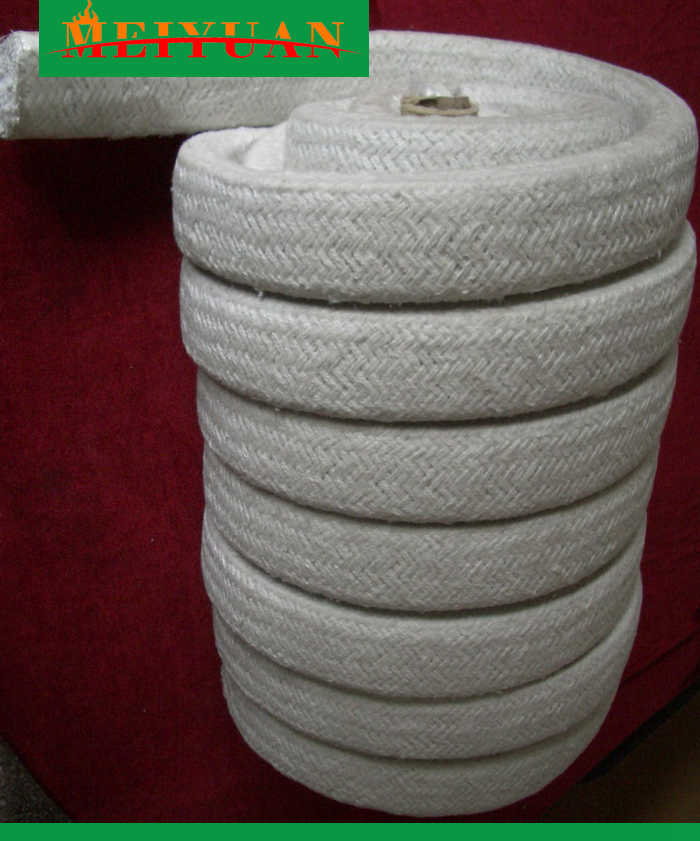

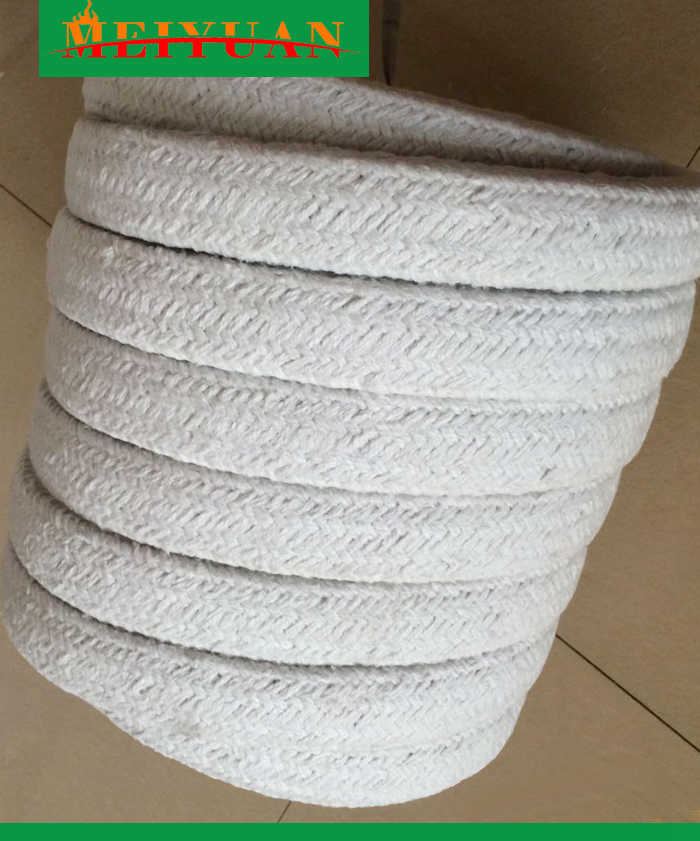

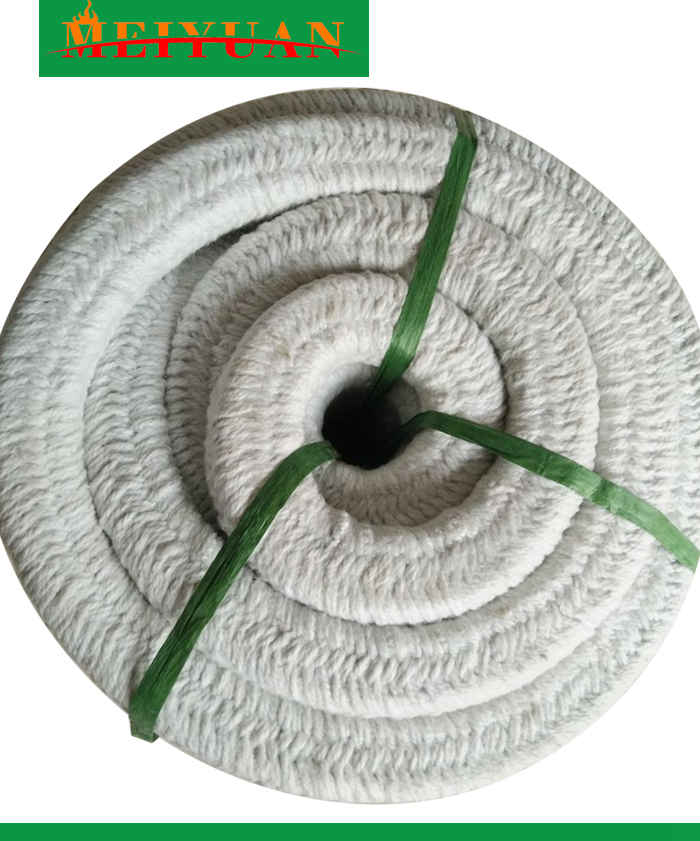

MEIYUAN Ceramic Fiber Rope is a length of fibers, twisted or braided together to improve strength for pulling & connecting and can also be called as fibril or filament. It can be divided into twisted rope, square rope and round rope. According to different working temperature and applications to add glass filament and inconel as reinforced materials.
Characteristics:
Low thermal conductivity
Resistance to high temperature and chemical attack
High mechanical strength
Good thermal shock resistance
Excellent insulating performance
Excellent tensile performance
Asbestos free
Environmental protection
Application:
Electric stove and bake oven’s door sealing
boiler, high temperature gas seals
flexible expansion joint connection
high temperature pipe insulation and sealing
cable insulation coating
coke oven opening sealing
pyrolyzer brick wall expansion joints
Technical data and specification
| MEIYUAN Ceramic Fiber Rope | ||
| Classification Temperature （℃） | 1260 | |
| Name | Glass Filament Reinforced Rope | Inconel Wire Reinforced Rope |
| Density（kg/m3） | 500 | |
| Long-term Operation Temp | 550 | 1050 |
| Water Content | ≤2 | |
| Organic Content（%） | ≤15 | |
| Shrinkage at 982℃ （%） | -1 | |
| Packing of ceramic rope | Braided Bag | |
| Specification | ||
| Ceramic fiber round rope | Diameter: 5-150mm | |
| Ceramic fiber square rope | Size: 5-150mm | |
| Ceramic fiber twisted rope | Diameter: 3-50mm | |
Why choose us?
1. Self owned raw material base, material inspection before entering factory, computer-controlled ingredient proportion system, strictly control raw material purity.
2. Ceramic Fiber tape offers such characteristics as pure white and stable quality.
3. Diameter varies from 3mm to 50mm.
