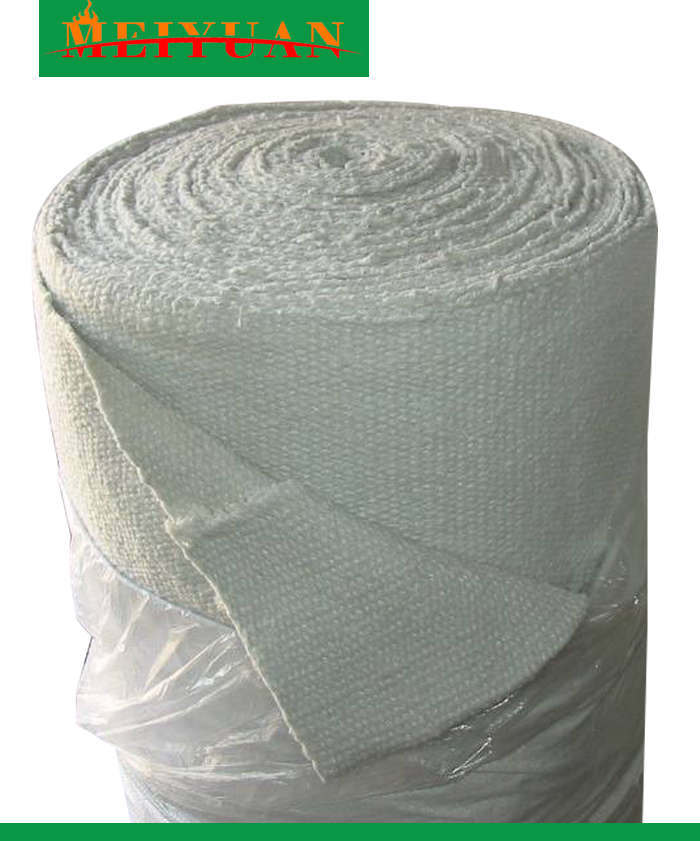

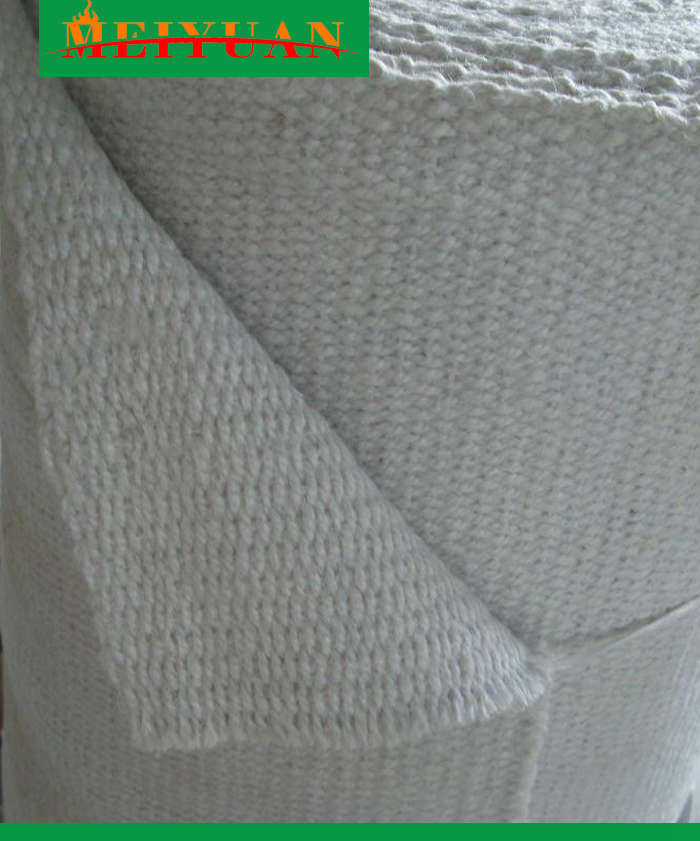

MEIYUAN Ceramic Fiber Cloth is a woven fabric made from our high quality ceramic fiber yarn. It is reinforced with fiberglass filament, or alloy steel wire, and available in a wide variety of thicknesses, widths and densities.
Products Details
Product Introduction:
MEIYUAN Ceramic Fiber Cloth is a woven fabric made from our high quality ceramic fiber yarn. It is reinforced with fiberglass filament, or alloy steel wire, and available in a wide variety of thicknesses, widths and densities.
Characteristics:
Low thermal conductivity
Resistance to high temperature and chemical attack
High mechanical strength
Good thermal shock resistance
Excellent insulating performance
Excellent tensile performance
Asbestos free
Environmental protection
Application:
Furnace heat zone separators
Exhaust hood curtains
Pipe hanger insulation
Gasket and wrapping material
Induction heating furnace coil insulation
Cable and wire insulation (thermal and/or electrical)
Infrared radiating diffusers
Boiler tadpole gaskets
Fuel line insulation
Technical data and specification
| MEIYUAN Ceramic Fiber Cloth | ||
| Classification Temperature （℃） | 1260 | |
| Name | Glass Filament Reinforced Cloth | Inconel Wire Reinforced Cloth |
| Density（kg/m3） | 500 | |
| Long-term Operation Temp | 550 | 1050 |
| Water Content | ≤2 | |
| Organic Content（%） | ≤15 | |
| Shrinkage at 982℃ （%） | -1 | |
| Packing of ceramic rope | Braided Bag | |
| Specification (T*W*L) | ||
| 2mm x 1m x 30m/ 3mm x 1m x 30m/ 5mm x 1m x 20m/ 6mm x 1m x 20m | ||
Why choose us?
1. Self owned raw material base, material inspection before entering factory, computer-controlled ingredient proportion system, strictly control raw material purity.
2. Ceramic Fiber cloth offers such characteristics as pure white and stable quality.
3. Thickness ranges: 2-6mm.
