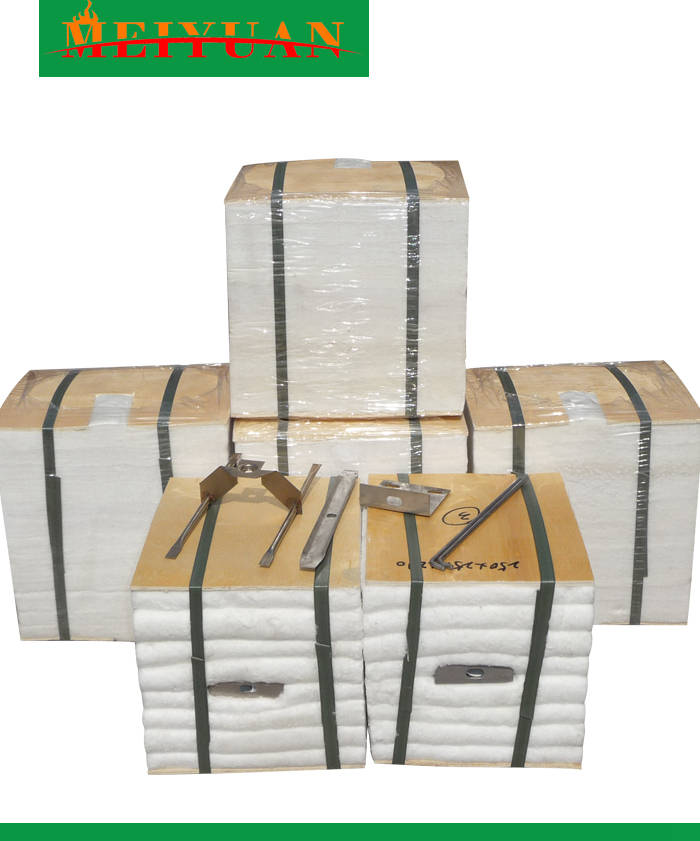

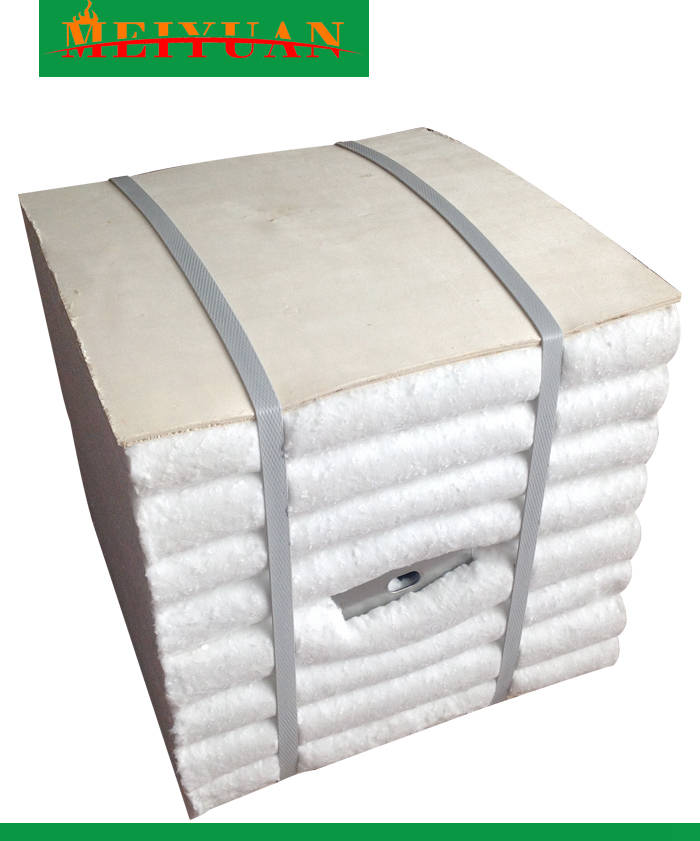

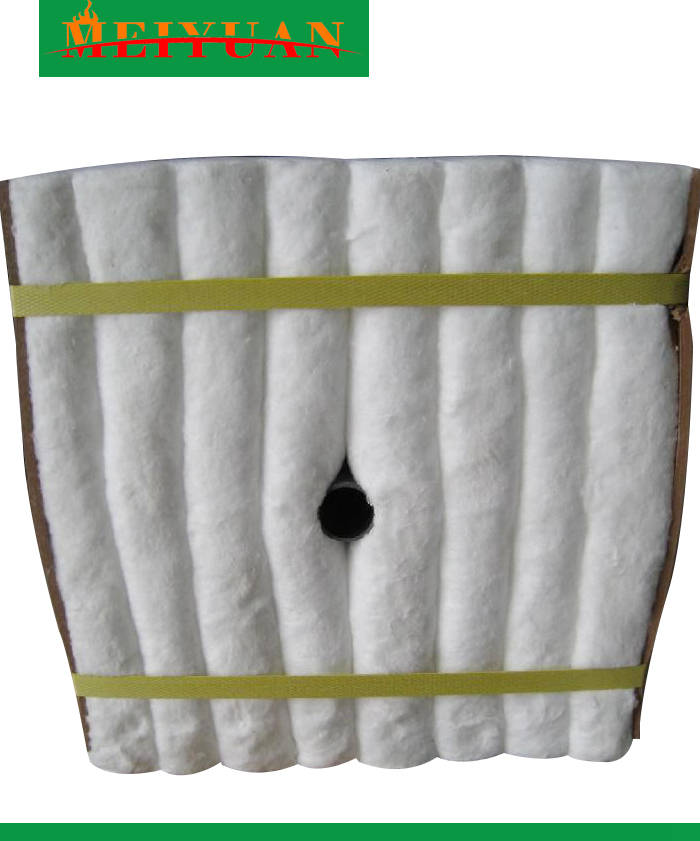

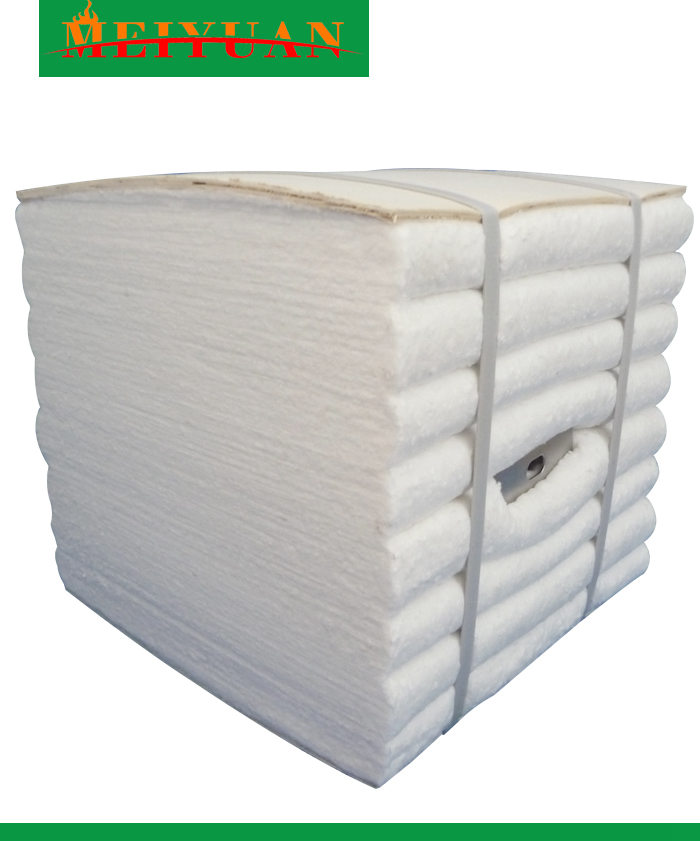

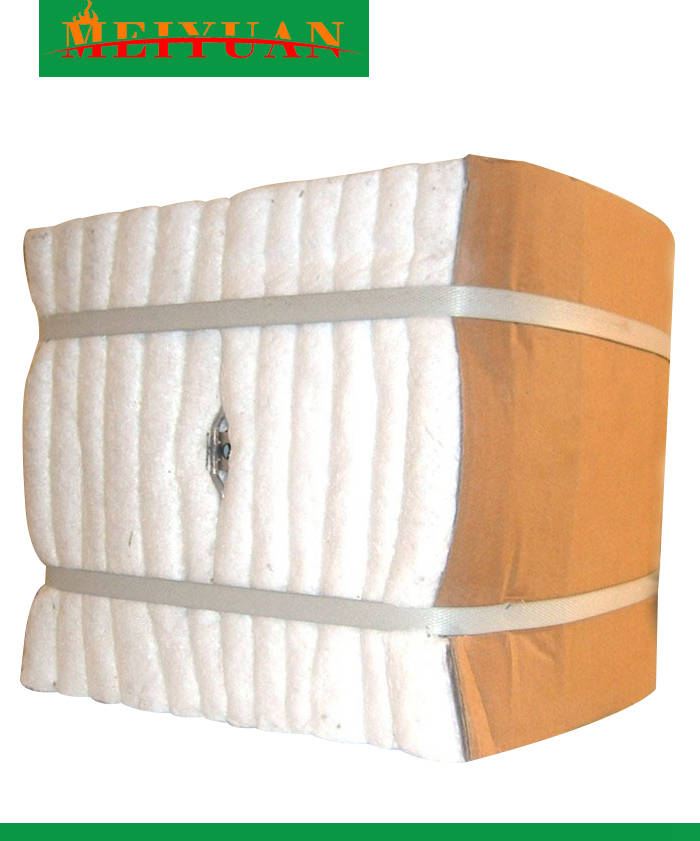

MEIYUAN 1430 High Zirconium ceramic fiber module is made of 1430 High Zirconium ceramic fiber blanket and is machined in a dedicated machine depending on the fiber assembly structure and dimensions.
Products Details
Product Introduction:
MEIYUAN 1430 High Zirconium ceramic fiber module is made of 1430 High Zirconium ceramic fiber blanket and is machined in a dedicated machine depending on the fiber assembly structure and dimensions. It can be directly fixed by anchors on the furnace wall, with good insulation and fire resistance, which can improve the fire resistance and insulation integrity of the furnace.
Characteristics:
Low thermal conductivity, low thermal capacity
Excellent thermal stability and good resistance to heat shock
Excellent tensile strength
Good anti-stripping performance
Good Sound-absorbing performance
Non-brittleness material, good flexibility
Excellent machining performance
Resistance to wind and erosion,long service life
Excellent heat insulation, fire prevention, sound absorption performance...
Application:
Petrochemical furnaces, cracking furnaces
Steel industry furnace, annealing furnace,roller hearth furnace, etc
The aluminum industry are hot furnace, furnace are Ceramic industry tunnel kilns, intermittent kilns
Waste recycling, combustion chamber
Gas Turbine exhaust ducts
Duct linings
Furnace hearths
Boiler insulation
Furnace lining insulation for high-temperature applications
Technical data and specification
| MEIYUAN ceramic fiber module | |||||
| Specification temperature | 1050COM | 1260STD | 1260 HP | 1400 | 1430HZ |
| Working Temp | 950℃ | 1050℃ | 1100℃ | 1200℃ | 1350℃ |
| Density | 160-220 kg/m3 | ||||
| Color | Pure white | ||||
| Permanent Change on Heating(%) (24h,Working Temp) | ≤-3 (950℃) | ≤-3 (1050℃) | ≤-3 (1100℃) | ≤-3 (1200℃) | ≤-3 (1350℃) |
| Rate of thermal conductivity(W/n.k)(Density 128 kg/m3) | 0.15(600℃) 0.22(800℃) | 0.12(600℃) 0.20(800℃) | 0.12(600℃) 0.20(800℃) | 0.12(600℃) 0.20(800℃) | 0.16(600℃) 0.20(800℃) |
| Tensile Strength(Mpa)(Thickness 25mm) | ≥0.04 | ≥0.05 | ≥0.05 | ≥0.04 | ≥0.06 |
| Chemical Composition (%) | |||||
| Al2O3 | 42-44 | 45-46 | 47-49 | 52-55 | 39-40 |
| Al2O3+SiO2 | ≥96 | ≥98 | ≥99 | ≥99 | - |
| ZrO2 | - | - | - | 5 | 15-17 |
| Al2O3+SiO2+ZrO2 | - | - | - | - | ≥99 |
| Fe2O3 | ≤1.0 | ≤0.8 | ≤0.2 | ≤0.2 | ≤0.2 |
| Na2O+K2O | ≤0.5 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 |
| CaO+MgO | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Specification （mm） | L*W: 300*300/ 450*300/ 600*300 | ||||
| H: 100/ 150/ 200/ 250/ 300 | |||||
| Package | Carton Box or Pallet | ||||
Why choose us?
1. Self owned raw material base, material inspection before entering factory, computer-controlled ingredient proportion system, strictly control raw material purity. therefore, manufactured ceramic fiber blanket’s shot content is lower than similar products.
2. Using double sides needled methods which can improve the tensile strength and the flatness of the ceramic fiber blanket. ceramic fiber blanket’s service life is longer than others.
3. Precise size.
4. Two sides cutting module, four sides cutting module are both available.
