MEIYUAN 1400 high alumina ceramic fiber board is manufactured by automatic vacuum forming process, Al2O3 content: 52-55%. Compared with the traditional production process, a new fully automatic production line has been introduced.
Products Details
Product Introduction:
MEIYUAN 1400 high alumina ceramic fiber board is manufactured by automatic vacuum forming process, Al2O3 content: 52-55%. Compared with the traditional production process, a new fully automatic production line has been introduced. It can guarantee 24 hours of continuous work and quick drying. The ceramic fiber board has the characteristics of high compressive strength, neat surface, accurate size and convenient installation.
Characteristics:
Resistance to high temperature;
Low thermal conductivity;
Resistance to thermal shock;
Excellent corrosion resistance;
Low shot content ;
Low heat storage;
High compressive strength;
Good sound absorption;
Excellent wind-erosion resistance, long service life;
Excellent thermal stability and thermal shock resistance;
Easily molded or cut, easy to install;
Accurate sizes and good flatness...
Application:
Industrial heat shields & thermal barriers
Industrial combustion chamber construction
Domestic appliance & light-duty industrial combustion chamber construction
refractory lining
Molten metal trough covers
Hot gas duct linings
Expansion joints
Insulating backup to dense refractory materials
Insulating backup to brick & castable
Furnace hot face lining in ceramic kiln, box furnace & petrochemical furnace
Use in industrial heat processing equipment
Rigid high-temperature gaskets & seals
High-temperature baffles & muffles
Flue & chimney linings in furnaces & kilns
Technical data and specification
| MEIYUAN ceramic fiber board | ||||||
| Specification temperature | 1050COM | 1260STD | 1260 HP | 1400 | 1430HZ | |
| Working Temp | 950℃ | 1050℃ | 1100℃ | 1200℃ | 1350℃ | |
| Color | Pure white | |||||
| Permanent Linear Change on Heating(%) | ≤-4 | ≤-3 | ≤-3 | ≤-3 | ≤-3 | |
| (24h,density128 kg/m3) | (950℃) | (1050℃) | (1100℃) | (1200℃) | (1350℃) | |
| Rate of thermal conductivity(W/n.k)(Density 128 kg/m3) | 0.13(600 C) | 0.13(800 C) | 0.13(800 C) | 0.12(600C) | 0.16(600C) | |
| 0.20(800 C) | 0.19(1000C) | 0.19(1000C) | 0.20(1000C) | 0.20(1000C) | ||
| Chemical Composition of (%) | ||||||
| Al2O3 | 37 | 45-46 | 47-49 | 52-55 | 39-40 | |
| Al2O3+SiO2 | 96 | 97 | 99 | 99 | - | |
| ZrO2 | - | - | - | 5 | 15-17 | |
| Al2O3+SiO2+ZrO2 | - | - | - | - | ≥99 | |
| Fe2O3 | ≤1.0 | ≤0.8 | ≤0.2 | ≤0.2 | ≤0.2 | |
| Na2O+K2O | ≤0.8 | ≤0.5 | ≤0.2 | ≤0.2 | ≤0.2 | |
| specification | ||||||
| Thickness (mm) | 20/25/50 | 80/100 | ||||
| Density (kg/m3) | 280/300/320/350 | 280/300/320 | ||||
| Size (mm) | 1200*1000 or customized size | |||||

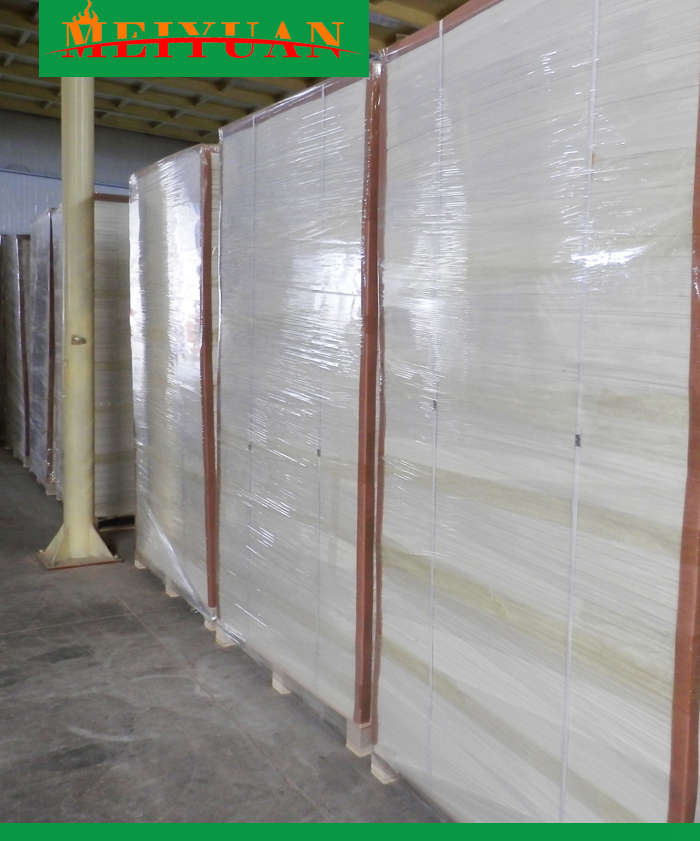

| Package | Carton box or pallet | |||||
Why choose us?
1. Self-owned raw material base, material inspection before entering the factory, computer controlled batching ratio system, strict control of raw material purity.
2. Continuously running automated production line with stable product quality, accurate dimensions and high tensile strength.
3. The automatic temperature control system can complete deep drying in 2 hours, so it has high compressive strength and high burst strength.
4. Manufacture ceramic fiber board with thickness varies from 25mm to 100mm.
