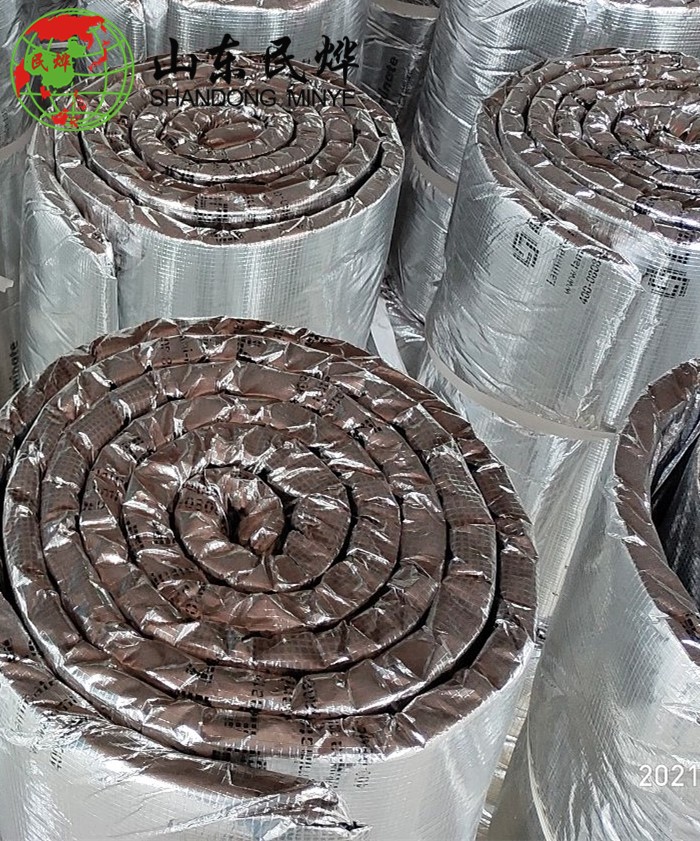

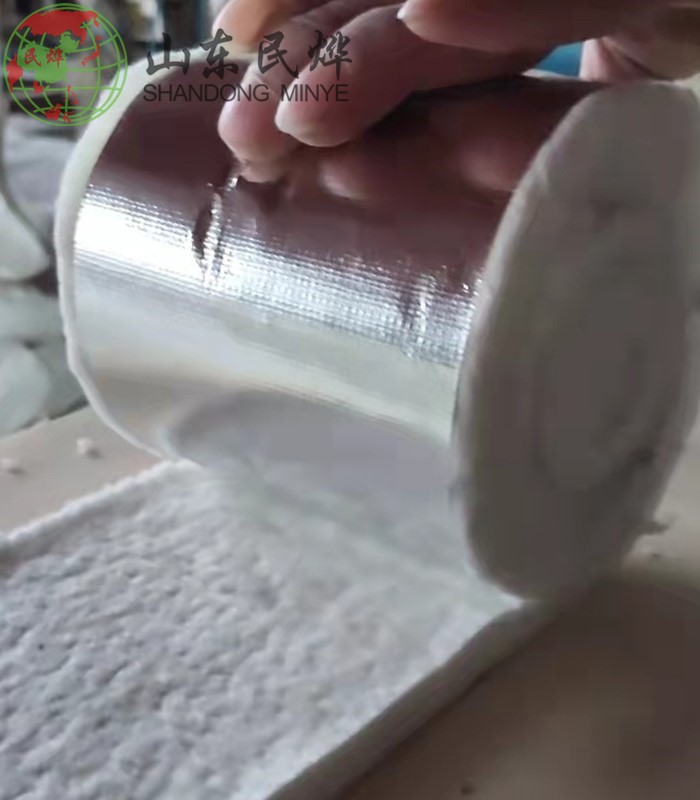

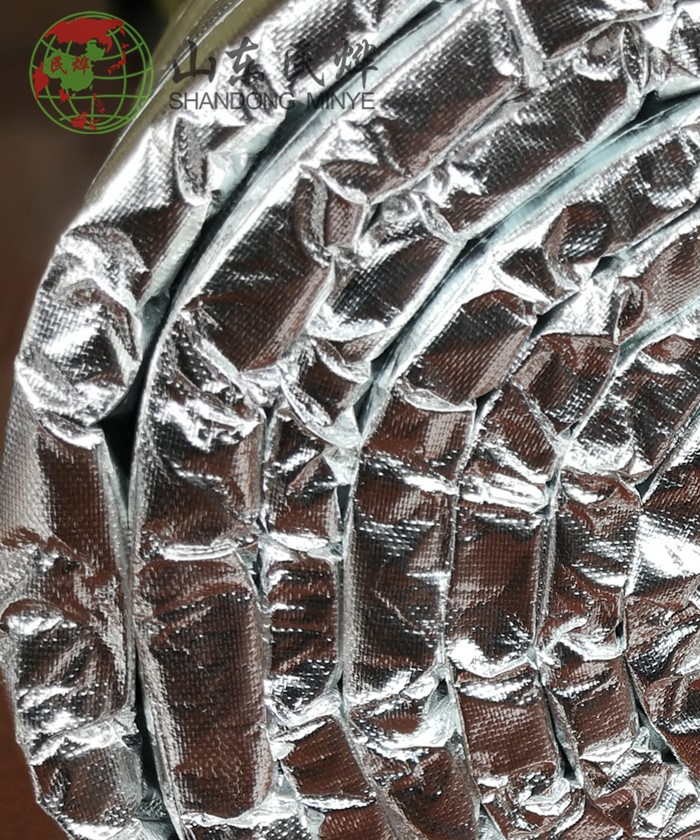

Ceramic Fiber Aluminum Foil Blanket

MINYE Ceramic fiber aluminum foil blankets are mainly used for fire protection, fire and pipe and container insulation and fire protection applications.

Inquire Now Next Product

Products Details

Product Introduction:

MINYE Ceramic fiber aluminum foil blankets are mainly used for fire protection, fire and pipe and container insulation and fire protection applications. The aluminum foil is made of European standard aluminum foil, which is thin and has good fit. It is possible to bond the ceramic fiber blanket to the aluminum foil better by direct bonding without using an adhesive. The product is easy to install and more durable.

Characteristics:

Resistance to high temperature;

Low thermal conductivity;

Resistance to thermal shock;

Excellent corrosion resistance;

Low shot content ;

Low heat storage;

High tensile strength;

Good sound absorption...

Application:

Seals for fireproof door

Electric circuit protection

Chimney liner insulation

Cable bracket, duct

Railroad oil tanker

Vessel

Vessel wall and board

Expansion joint

Structural steel panel

Fire protection, Ships engine rooms, exhaust chimneys

Air ventilation duct enclosure, through penetration fire stop systems

Electrical ducts, protection of electrical wiring

General high temperature insulation, exhaust ducts of commercial and industrial application

High temperature ventilation ducts, kitchen exhaust hoods and fume pipes, supply and exhaust air vents

Technical data and specification

MINYE ceramic fiber blanket
Specification temperature	1050COM	1260STD	1260 HP	1400HA	1400HZA	1430HZ
Working Temp(℃)	950	1050	1100	1200	1200	1350
Density (kg/m3)	64/ 96/ 128/ 160
Color	Pure white
Rate of liner(%)	≤-3	≤-3	≤-3	≤-3	≤-3	≤-3
(24h,density128 kg/m3)	(950℃)	(1050℃)	(1100℃)	(1200℃)	(1200℃)	(1350℃)
Rate of thermal conductivity(W/n.k)(Density 128 kg/m3)	0.09(400 C)	0.09(400 C)	0.09 (400 C)	0.132(600C)	0.132(600C)	0.16(600C)
	0.176(800 C)	0.176(800C)	0.176(800C)	0.22(1000C)	0.22(1000C)	0.22(1000C)
			0.22(1000 C)
Tensile strength(Mpa)	0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12
(Density 128 kg/m3)	0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12
Chemical Composition (%)
Al2O3	42-44	45-46	47-49	52-55	45-46	39-40
Al2O3+SiO2	≥96	≥98	≥99	≥99	-	-
ZrO2	-	-	-	-	5	15-17
Al2O3+SiO2+ZrO2	-	-	-	-	≥99	≥99
Fe2O3	≤1.0	≤0.8	≤0.2	≤0.2	≤0.2	≤0.2
Na2O+K2O	≤0.5	≤0.3	≤0.2	≤0.2	≤0.2	≤0.2
CaO+MgO	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1
specification
Thickness	Density kg/m3				Length	Width
mm	64	96	128	160	mm	mm
6	No	No	customized	customized	7200	610, 1220
13	No	Yes	Yes	customized	14640
19	No	Yes	Yes	customized	9760
25	customized	Yes	Yes	Yes	7320
38	customized	Yes	Yes	Yes	4880
50	customized	Yes	Yes	No	3660

Why choose us?

1. Self owned raw material base, material inspection before entering factory, computer-controlled ingredient proportion system, strictly control raw material purity. therefore, manufactured ceramic fiber blanket's shot content is lower than similar products.

2. One side, two sides, and six sixes aluminum foil ceramic fiber blanket are all available.

3. Aluminum foil's fire proof property is qualified with ASTM E119, ISO 834, UL 1709 standard.
